Shenghua XLPE Insulated Aluminum Power Cable 1kV Low Voltage

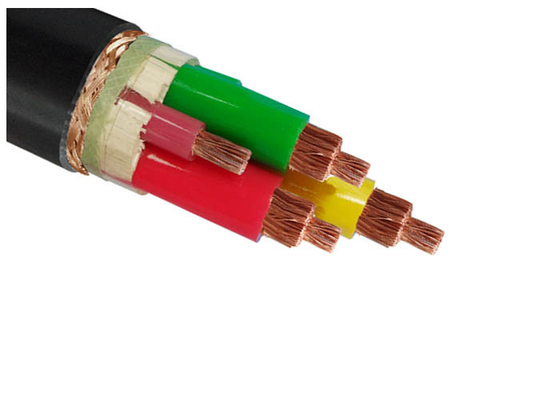

Gambar besar : Shenghua XLPE Insulated Aluminum Power Cable 1kV Low Voltage

Detail produk:

Tempat asal:	Shanghai, Cina
Nama merek:	SHANCABLE
Sertifikasi:	ISO,CE,IEC,TUV,KEMA
Nomor model:	Yjlv 0.6-1kv

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	Bisa dinegosiasikan
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Gendang Kayu
Waktu pengiriman:	10 HARI
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	100KM/Minggu

Kontak

Detil Deskripsi produk

Konduktor:	Konduktor aluminium untai kompak, cl.2 sesuai IEC 60228	Isolasi:	XLPE (Polyethylene Terkait Silang) Dinilai pada 90 oC
Layar Konduktor::	Semi-konduktor	Sampel:	bebas
warna isolasi:	Merah, Kuning, Biru	Suhu Operasi:	90 derajat
Sarung:	PVC atau FR-PVC Tipe ST2 ke IEC 60502, Hitam	Layar:	Pita tembaga
perusahaan:	grup shenghua	Merek:	Kabel Sh
Menyoroti:	XLPE insulated aluminum power cable , low voltage XLPE power cable , 1kV aluminum power cable

Shenghua XLPE Insulated Power Cable 1kV | Aluminum Conductor Low-Voltage Solution

Product Specifications

Attribute	Value
Conductor	Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation	XLPE (cross-linked polyethylene) rated at 90°C
Conductor Screen	Semi-conductor
Sample	Free
Insulation Color	Red, Yellow, Blue
Operating Temp	90°C
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black
Screen	Copper tape
Corporation	Shenghua Group
Brand	Sh Cable

Product Overview

Multi Core Aluminum Conductor XLPE Insulated Power Cable Low Voltage 1kV

Shenghua XLPE Insulated Power Cable revolutionizes low-voltage power transmission with unmatched reliability, engineered to exceed global standards while delivering unparalleled performance in diverse environments.

Key Features

Superior Conductor Design: Compact stranded aluminum conductors (Class 2 per IEC 60228) optimize conductivity while reducing cable weight and installation costs
XLPE Insulation: Cross-linked polyethylene rated at 90°C ensures high electric strength, exceptional thermal aging resistance, and resilience against environmental stress and chemical corrosion
Robust Sheathing: PVC or flame-retardant PVC (ST2 to IEC 60502) provides mechanical protection and fire safety, ideal for indoor/outdoor laying

Applications

Underground power networks in urban infrastructure
Industrial plants and transformer stations requiring stable 90°C operation
Renewable energy projects where corrosion resistance and flexibility are critical

Standards & Certifications

International: IEC 60502-1, IEC 60228
China: GB/T 12706 (GB/T 18380-3 for flame-retardant variants)
On-Demand Certifications: CE, RoHS, KEMA, plus BS (UK), DIN (Germany), or ICEA (North America) support

Technical Specifications

Conductor (mm²)	Approx. O.D. (mm)	Max. DC Resistance (Ω/km)	Current Rating (Soil, A)	Short-Circuit Withstand
4 × 50	23	0.641	145	250°C (≤5 sec)
4 × 185	42	0.164	305	250°C (≤5 sec)
4 × 400	66	0.078	445	250°C (≤5 sec)

Data validated under ambient ≥0°C, with bending radii ≤15× O.D. (multi-core)

Construction Details

Conductor: Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Detailed Specifications

Nom. Cross-section of conductor (mm²)	Strands No./Dia. Of Conductor (pc/mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Approx. O.D. (mm)	Approx. Weight (kg/km)	Max. D.C Resistance of Conductor (20°C) (Ω/km)	Testing Voltage A.C (kV/5min)	Current Rating In air (A)	Current Rating In soil (A)
4 × 4	1/2.25	0.7	1.8	13.0	155	7.41	3.5	27	36
4 × 6	1/2.76	0.7	1.8	14.0	184	4.61	3.5	35	46
4 × 10	7/1.38	0.7	1.8	17.0	258	3.08	3.5	47	59
4 × 16	7/1.78	0.7	1.8	20.0	366	1.91	3.5	64	80
4 × 25	7/2.14	0.9	1.8	23.0	540	1.200	3.5	82	100
4 × 35	7/2.52	0.9	1.8	25	686	0.868	3.5	100	120
4 × 50	10/2.52	1.0	1.8	23	907	0.641	3.5	125	145
4 × 70	14/2.52	1.1	1.8	27	1192	0.443	3.5	155	175
4 × 95	19/2.52	1.1	1.9	31	1598	0.320	3.5	200	210
4 × 120	24/2.52	1.2	2.0	33	1949	0.253	3.5	220	240
4 × 150	30/2.52	1.4	2.2	38	2517	0.206	3.5	250	270
4 × 185	37/2.52	1.6	2.3	42	3091	0.1640	3.5	295	305
4 × 240	48/2.52	1.7	2.5	47	3825	0.1250	3.5	345	355
4 × 300	61/2.52	1.8	2.6	52	4830	0.1000	3.5	395	400
4 × 400	61/2.97	2.0	3.1	66	5840	0.0778	3.5	445	445
