Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified

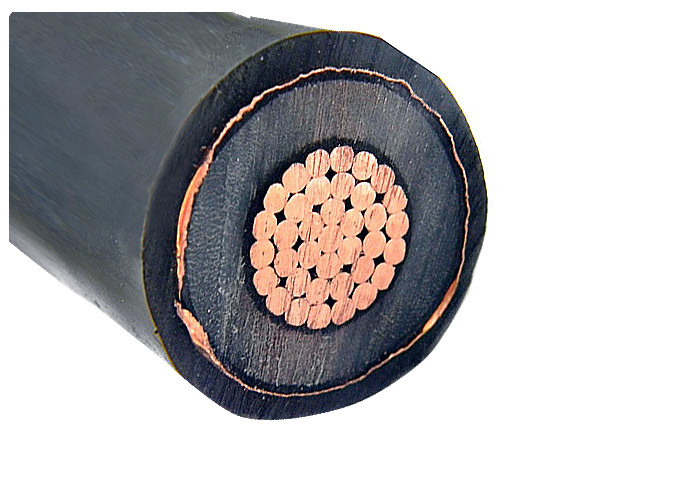

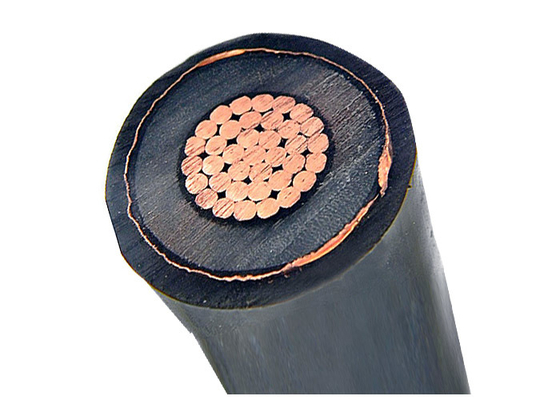

Gambar besar : Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified

Detail produk:

Tempat asal:	Shanghai, Cina
Nama merek:	SHANCABLE
Sertifikasi:	ISO,CE,IEC,TUV,KEMA
Nomor model:	Yjlv 0.6-1kv

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	Bisa dinegosiasikan
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Gendang Kayu
Waktu pengiriman:	10 HARI
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	100KM/Minggu

Kontak

Detil Deskripsi produk

Jenis:	Kabel Daya Berisolasi XLPE	Fitur:	Tegangan rendah
Layar Konduktor::	Semi-konduktor	Sampel:	bebas
warna isolasi:	kuning biru	Keuntungan:	Ketahanan abrasi
Sarung:	PVC atau FR-PVC Tipe ST2 ke IEC 60502, Hitam	Layar:	Pita tembaga
perusahaan:	grup shenghua	Merek:	Kabel Sh
Menyoroti:	XLPE insulated power cable 21/35kV , abrasion-resistant XLPE power cable , IEC-certified XLPE insulated cable

Shenghua XLPE Insulated Power Cable 21/35kV | Abrasion-Resistant & IEC-Certified

Product Specifications

Attribute	Value
Type	XLPE Insulated Power Cable
Feature	Low Voltage
Conductor Screen	Semi-conductor
Sample	Free
Insulation Color	Yellow, Blue
Advantage	Abrasion Resistance
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black
Screen	Copper tape
Corporation	Shenghua Group
Brand	SH Cable

Premium XLPE Insulated Power Cables for 21/35(36)kV Applications

Shenghua's low-voltage XLPE insulated power cables (21/35(36)kV) combine cutting-edge engineering with extreme abrasion resistance, delivering reliable power transmission for industrial grids, renewable energy farms, and urban infrastructure. Trusted across 60+ countries, our cables ensure safety, efficiency, and compliance with global standards.

Market-Leading Features

Triple-Layer Defense System: Compact stranded aluminum conductor (IEC 60228 Class 2) reduces weight by 60% versus copper while lowering installation costs.
Advanced Insulation: XLPE (cross-linked polyethylene) rated for 90°C continuous operation, 130°C emergencies, and 250°C short circuits (≤5 sec) - outperforming PVC in thermal aging and chemical resistance.
Protective Sheath: Abrasion-resistant PVC or FR-PVC (IEC 60502 ST2) provides UV protection, flame retardancy, and mechanical durability for indoor/outdoor applications.

Engineered for Performance & Safety

Superior Abrasion Resistance: Reinforced sheath withstands friction from direct burial, duct pulling, and industrial wear, significantly extending cable lifespan.
Enhanced Fire Safety: FR-PVC sheath inhibits flame spread and reduces toxic fumes (compliant with IEC 60332/60754), critical for tunnels and crowded spaces.

Global Compliance & Certifications

International Standards: IEC 60502-1, GB/T 12706, with custom approvals for BS/DIN/ICEA
Certifications: CE, RoHS, KEMA, with LSOH (Low Smoke Zero Halogen) options available

Technical Performance Data

Conductor (mm²)	Max. DC Resistance (Ω/km)	Current Rating (Soil, A)	Approx. Weight (kg/km)	Key Application
4 × 185	0.164	305	3,091	Industrial plants/substations
4 × 400	0.0778	445	5,840	High-load renewable energy hubs
4 × 300	0.100	400	4,830	Metro tunnels & urban grids

Efficiency Highlights:

Ultra-low resistance (e.g., 0.0778Ω/km for 4×400mm²) reduces energy loss by 10-15%
Minimal bending radius (15× OD for multi-core) simplifies installation in tight spaces

Critical Applications

Industrial Zones: Withstands oil, chemicals, and mechanical stress; 305A soil current (4×185mm²) powers heavy machinery
Renewable Energy Farms: Aluminum conductors resist soil corrosion; XLPE insulation endures -40°C to 130°C
Urban Underground Grids: FR-PVC sheath prevents abrasion during direct burial; zero toxic fumes enhance public safety

Manufacturing Excellence

Scale & Quality: 5000+ employees, ISO 9001/14001 certifications, and 15,000 km/month capacity ensure batch consistency
Global Logistics: Wooden drum packaging for damage-free shipping; MOQ 200 meters, 30% deposit pre-production
Custom Solutions: Tailored configurations for extreme abrasion/chemical exposure environments

Technical Specifications
