Detail produk:
Syarat-syarat pembayaran & pengiriman:
|

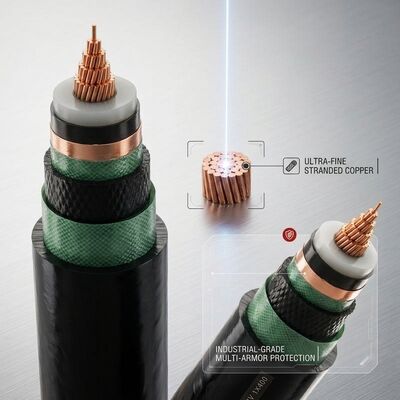

| Nama Produk: | Kabel Berinsulasi XLPE Kelas 5 Fleksibel | Aplikasi: | Kabinet Switchgear, Skid dan Pengkabelan Peralatan Bergerak |
|---|---|---|---|
| Bahan Konduktor: | Tembaga Anil Untai Halus Kelas 5 | Bagian Inti dan Penampang: | 4x35mm2 |
| Tegangan terukur: | 0,6/1 kV (Um 1,2 kV) | Bahan Isolasi: | XLPE, nominalnya 0,9 mm |
| Bahan Sarung: | PVC Fleksibel, Tahan Minyak | Radius Bending Minimum: | 6 Kali Diameter Keseluruhan, Tetap |
| Kelas Fleksibel: | Kelas 5 hingga IEC 60228 | Standar Desain: | IEC 60502-1, EN 50525-2-31 |
| Menyoroti: | XLPE Insulated RV-K Power Cable,Fine Stranded XLPE RV-K Power Cable,4x35mm2 XLPE Insulated Power Cable |
||
Product Overview Tight cabinet layouts, skid mounted pump sets and equipment that moves on rails all punish a rigid cable. This four core 35mm2 cable uses a class 5 fine stranded copper conductor, so the assembly bends to six times its diameter and follows the inside of a panel without springing back or stressing terminal blocks. The XLPE insulation provides a 90 C conductor rating and better abrasion resistance than elastomer insulation in hot panel environments, while the
